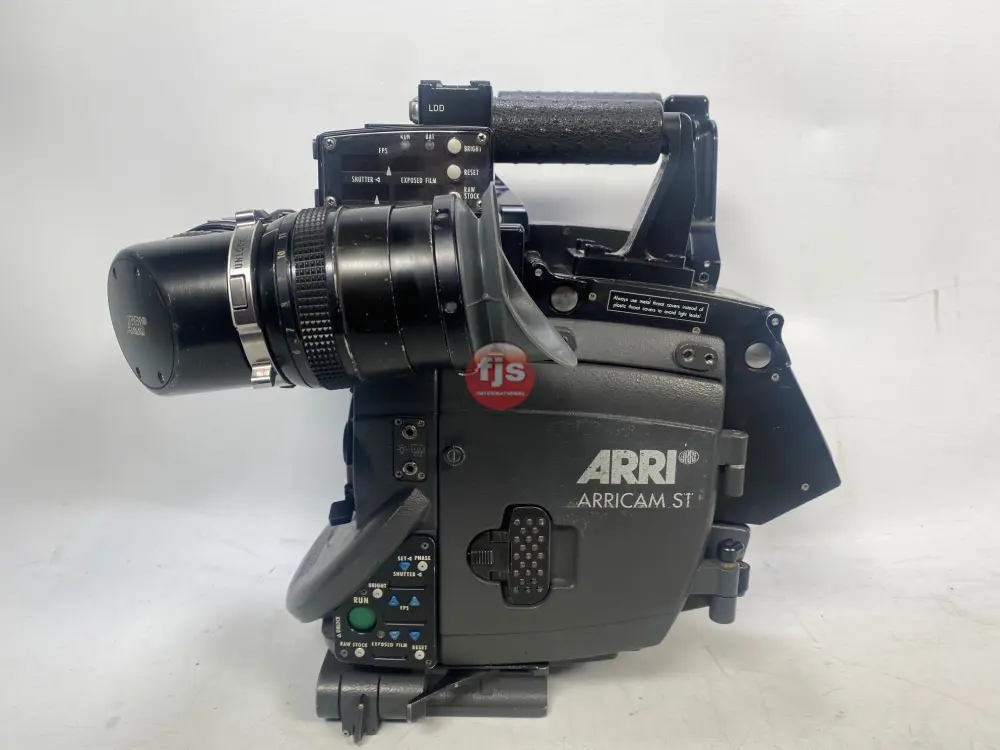

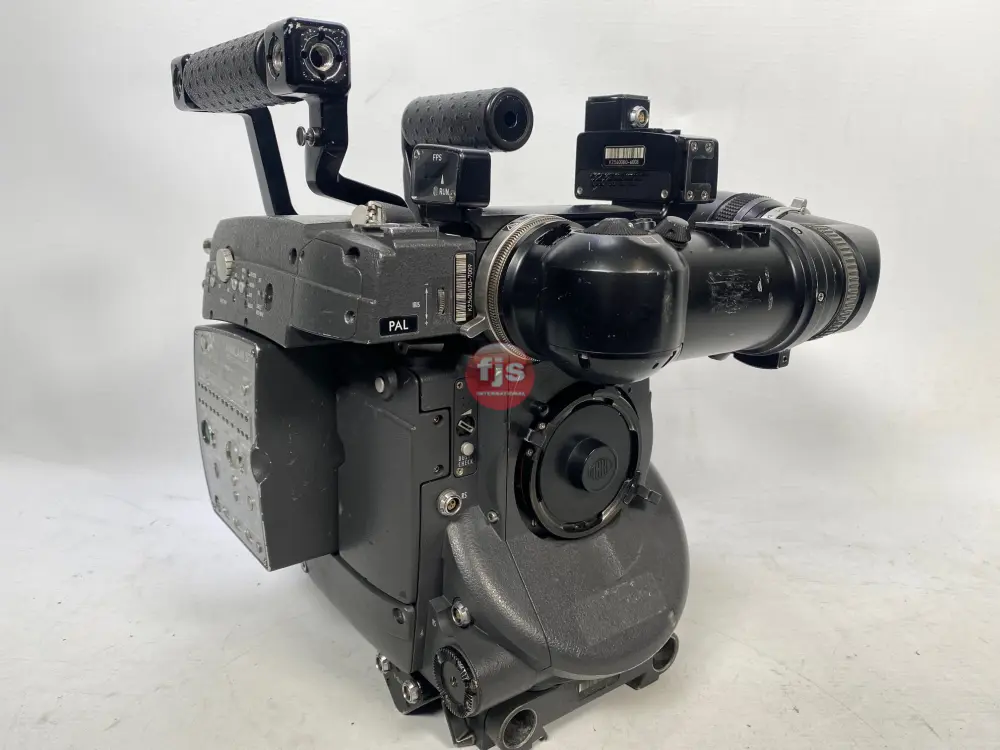

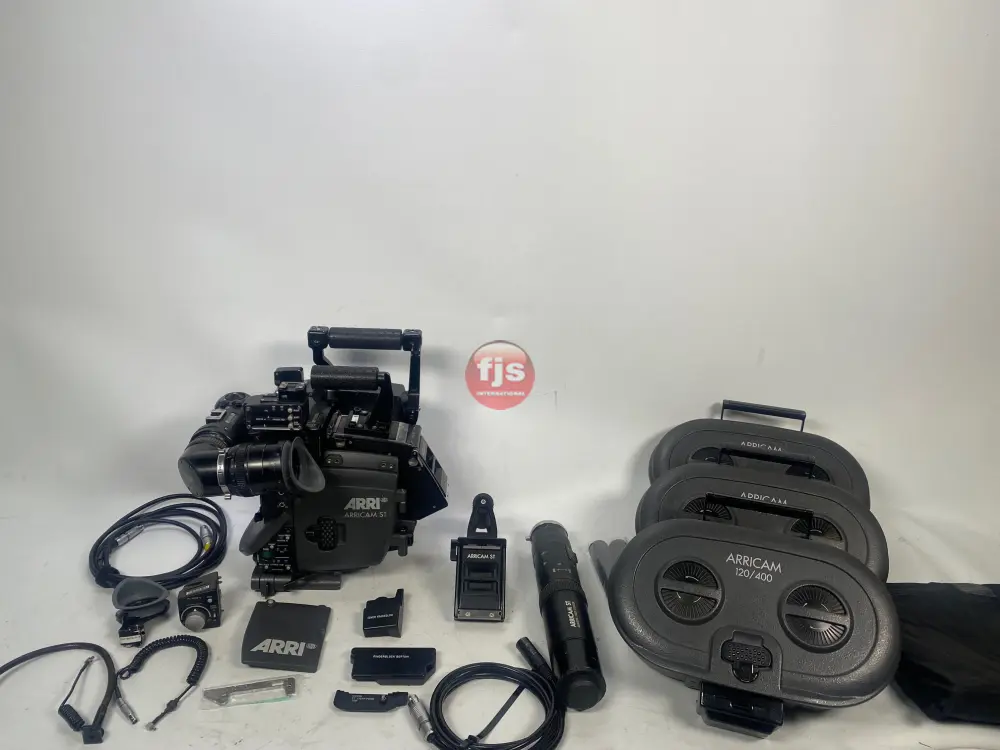

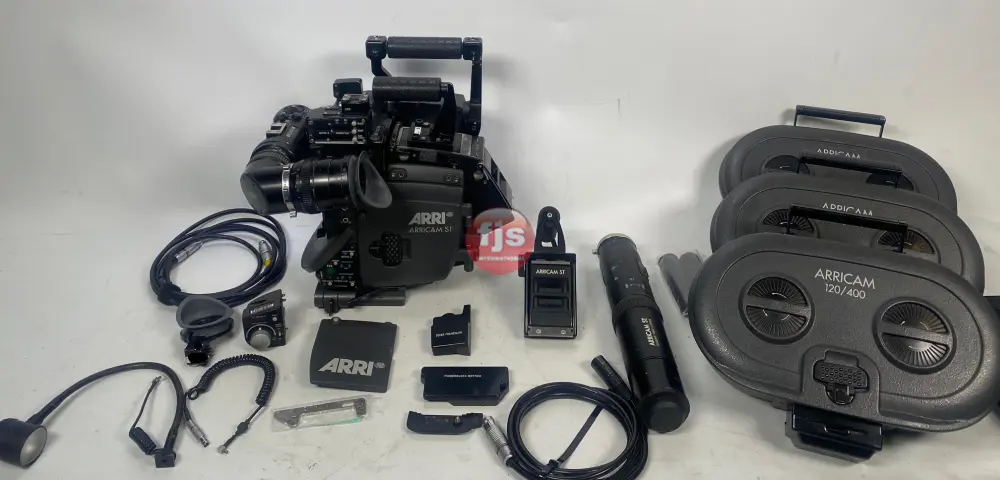

ARRICAM ST 4 PERF CAMERA PACKAGE

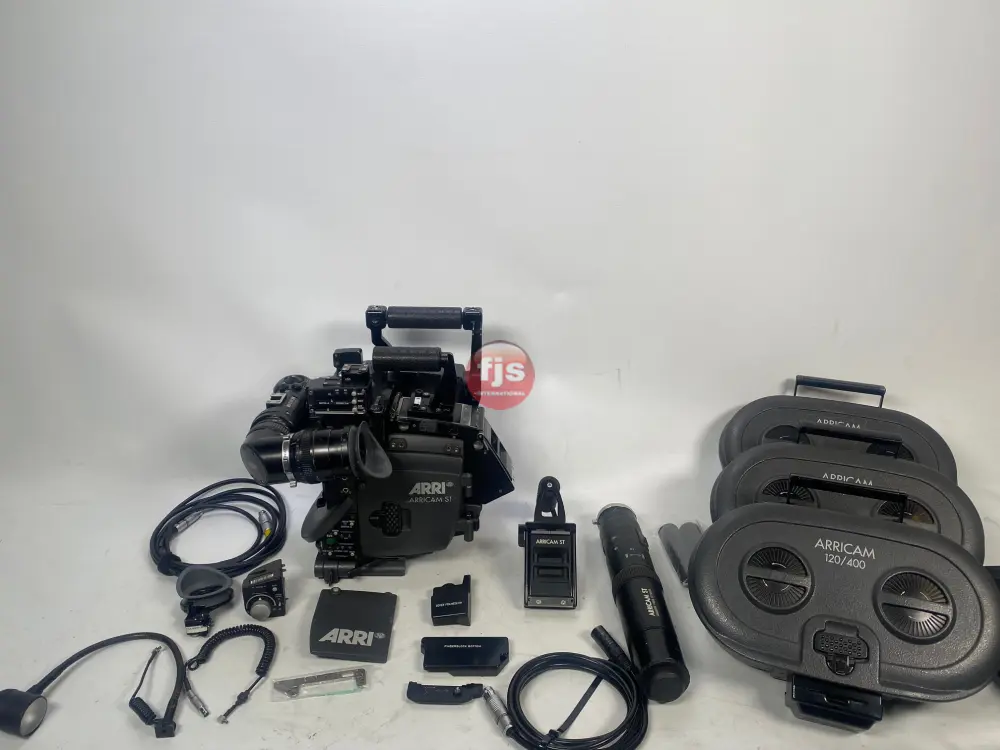

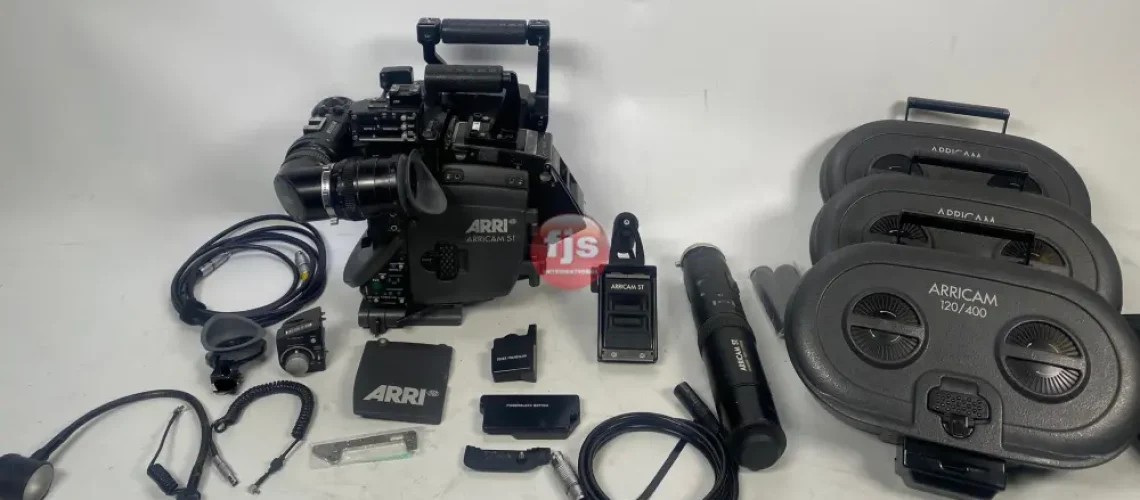

Includes:

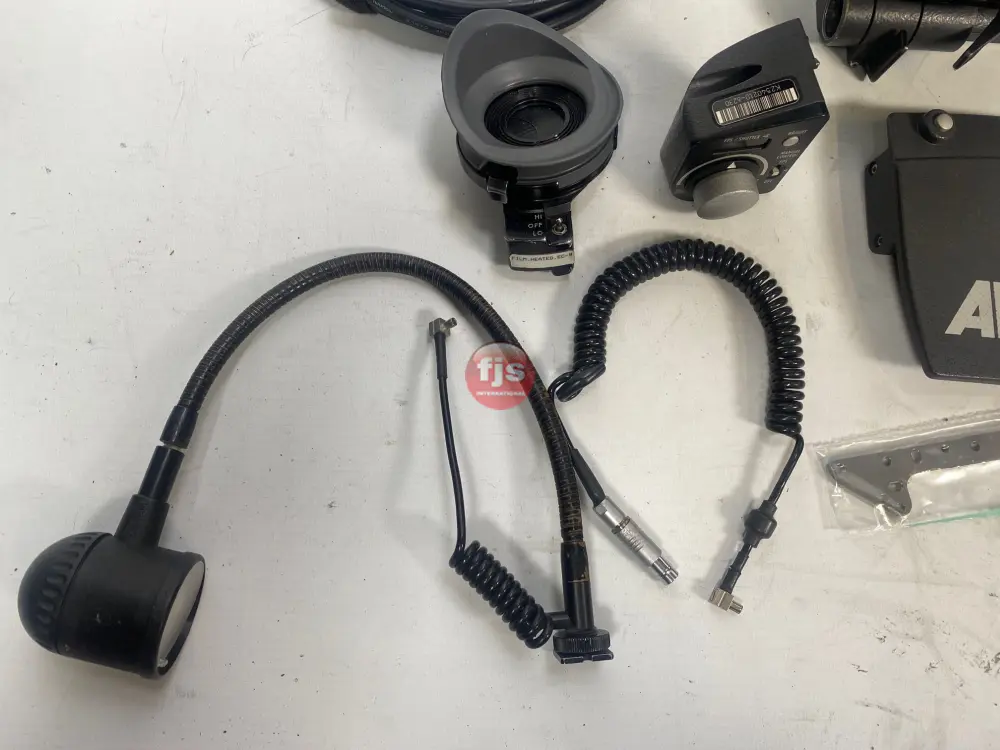

Arri Working light

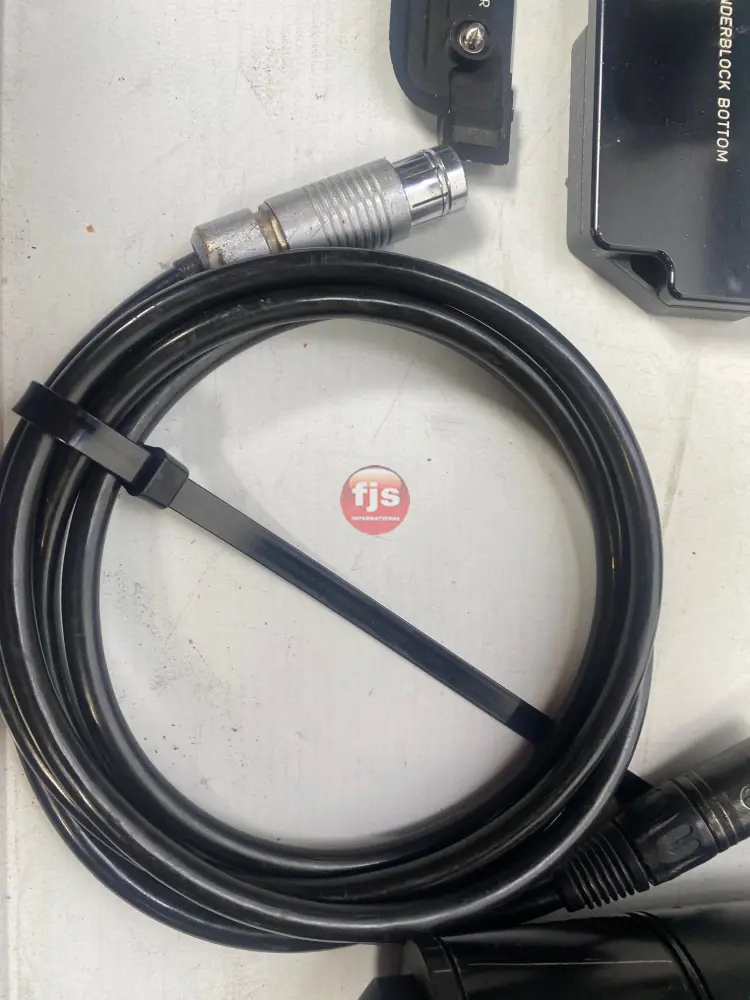

Power cable
Arri Side Handle
Arri Bridge Plate

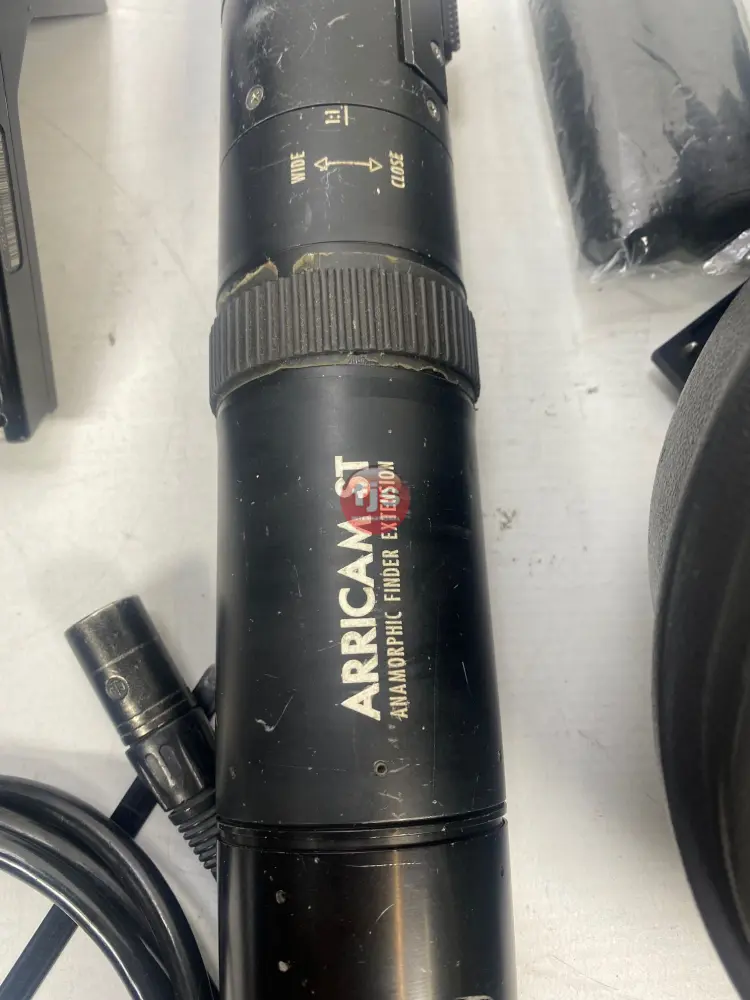

Arri Anamorphic Finder Extension

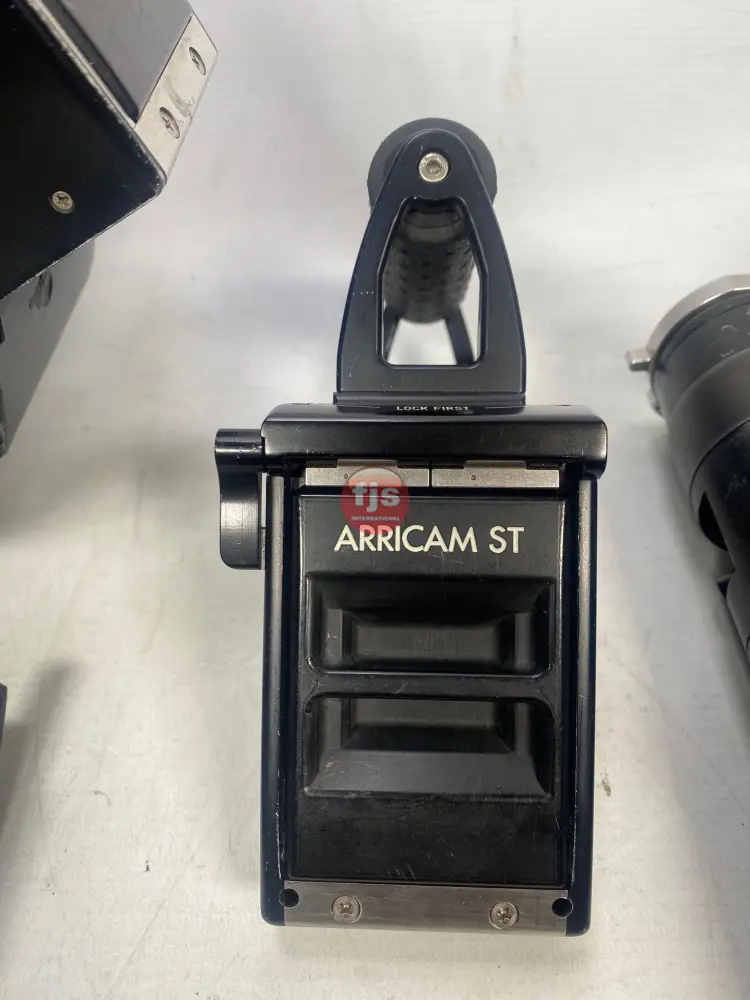

ST mag adaptor
Arri HE-3 Heatable Eyecup
Arri HE-3 Heatable Eyecup Cable

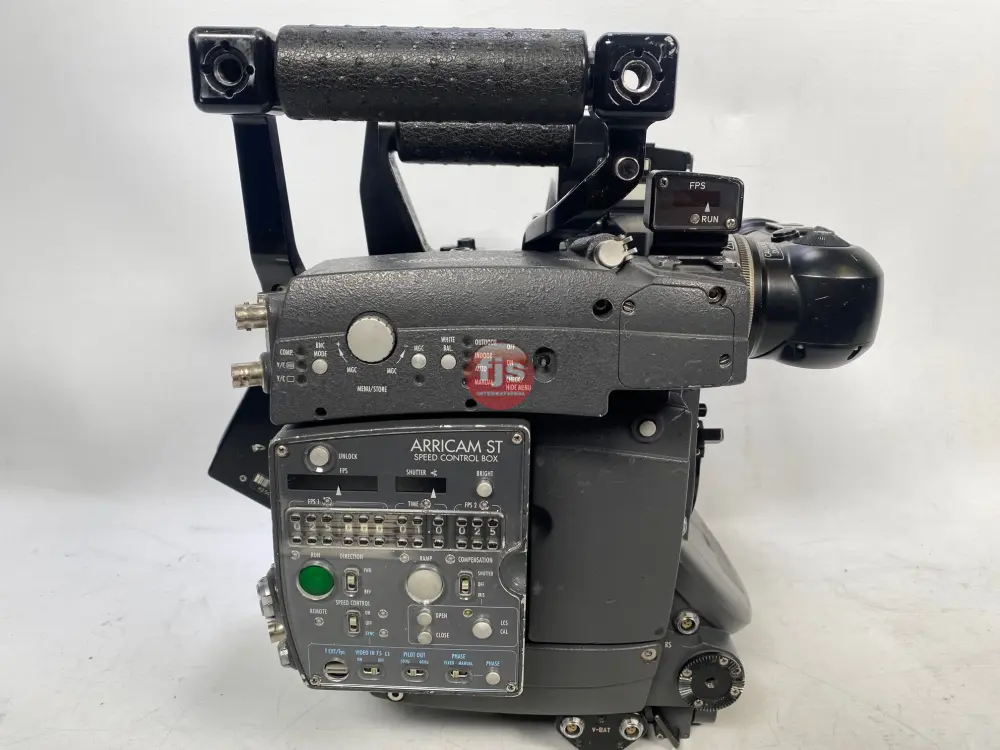

FPS/Shutter Controller
Magazines

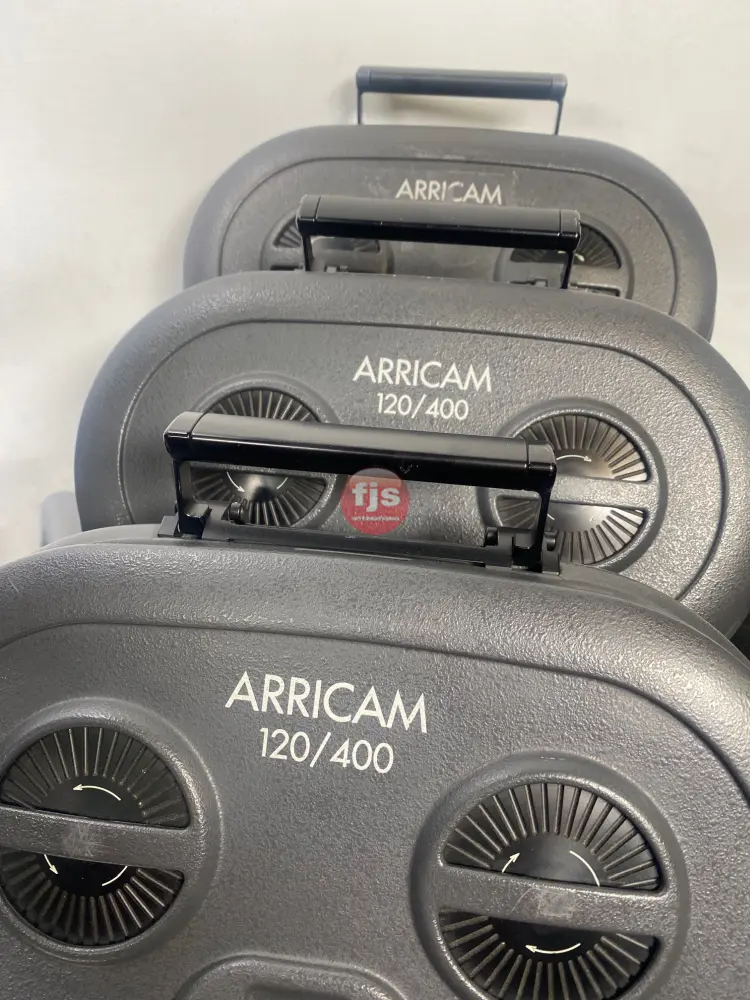

Arricam 120/400 x 3

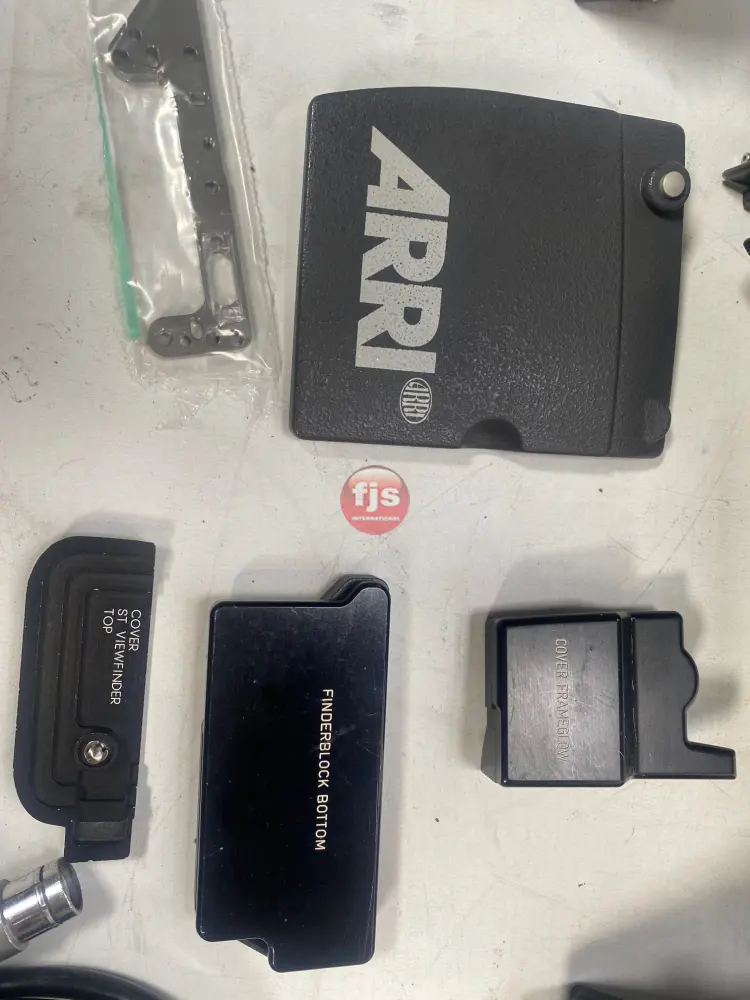

Frame glow cover
Cover ST viewfinder right
Cover ST viewfinder Top
Finder block bottom
Film changing bag

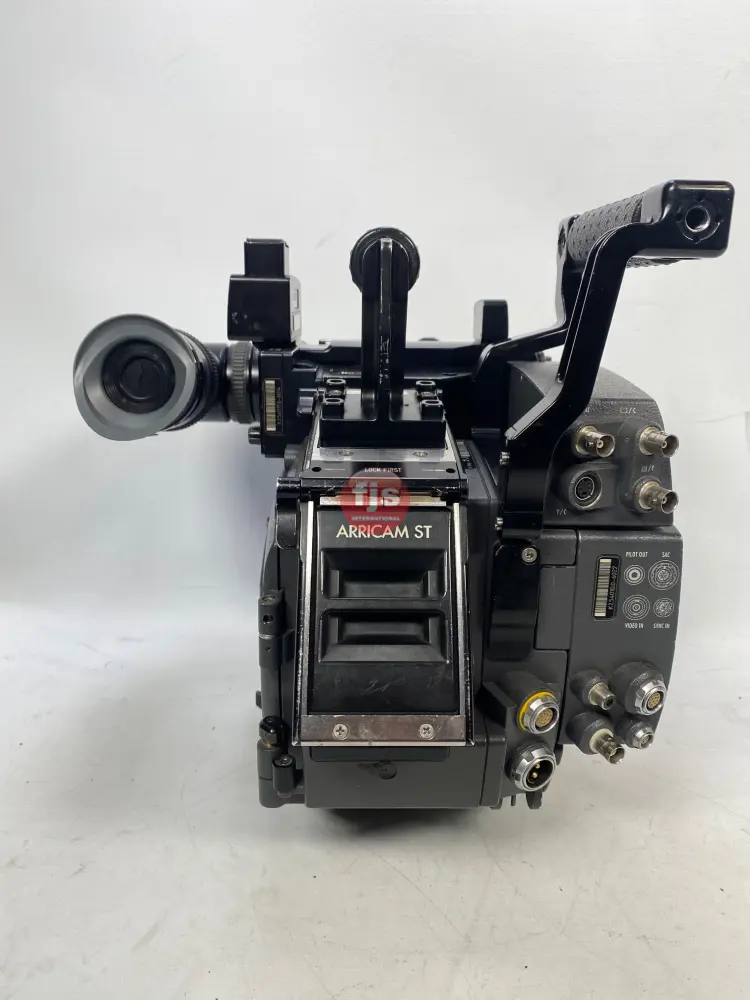

The ARRICAM Studio (ST) 4-perf is a highly advanced 35mm sync-sound film camera that represents the pinnacle of analog cinematography, specifically configured with a 4-perforation movement to provide the largest possible negative area. Engineered for near-silent operation (under 20 dB), it combines the mechanical innovations of Moviecam with ARRI’s sophisticated electronic integration, making it the premier choice for high-end studio productions. The 4-perf configuration is highly valued for its versatility, offering the height required for both 1.85:1 spherical and 2.39:1 anamorphic cinematography while maintaining superior image quality and a cleaner grain structure. With its modular design, integrated Lens Data System (LDS), and electronically adjustable mirror shutter, the ARRICAM ST remains a gold-standard “workhorse” for narrative features where total creative control and the organic texture of 35mm film are required.

Key Features:

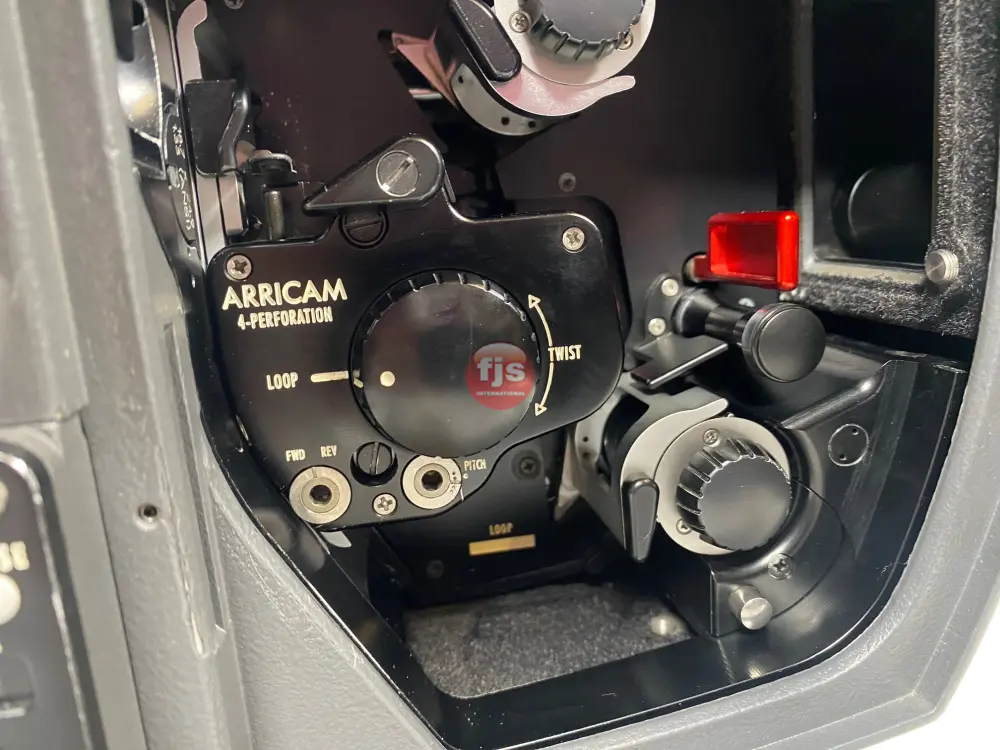

4-Perforation Movement: Provides the maximum vertical negative area, ideal for anamorphic lenses and high-resolution spherical capture.
Near-Silent Sync-Sound: Operates at sound levels below 20 dB, allowing for clean dialogue recording even in tight studio environments.
Electronic Mirror Shutter: Adjustable from 0° to 180° in 0.1° increments, supporting precise exposure control and speed-shutter ramping.
Variable Frame Rates: Crystal-controlled speeds from 1 to 60 fps (forward) and 1 to 32 fps (reverse) for versatile motion capture.
Integrated LDS (Lens Data System): Built-in electronics transmit lens metadata to the camera for streamlined VFX and post-production workflows.

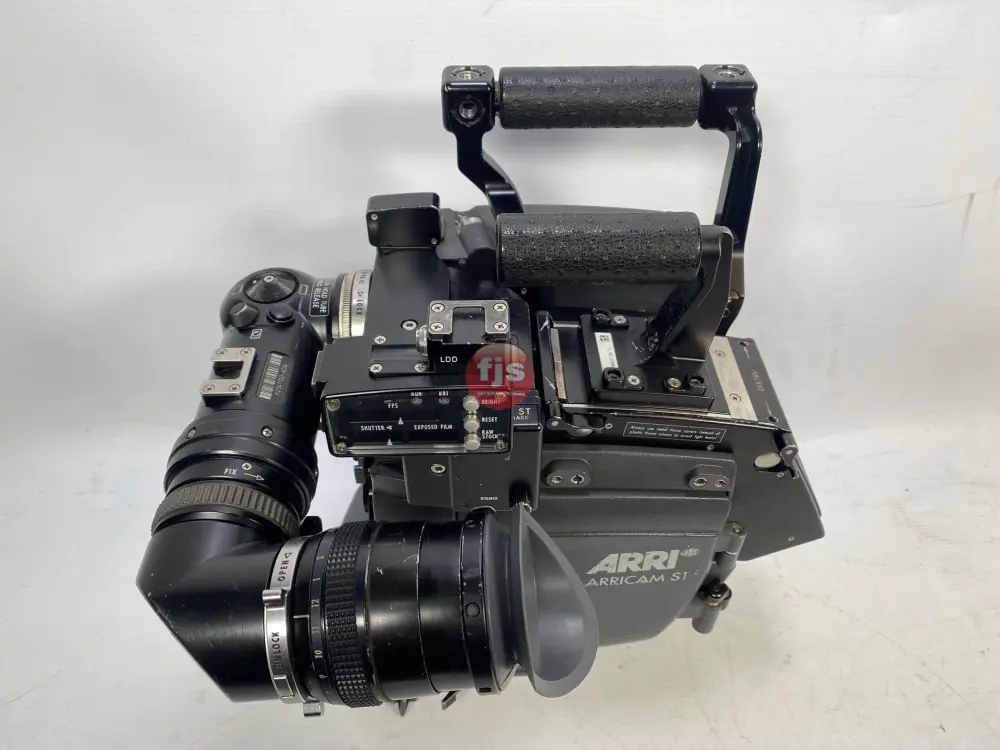

Modular Viewfinder System: Features a highly bright, level-correcting optical viewfinder with anamorphic de-squeeze and 360° rotation.
Production-Ready I/O: Equipped with the Integrated Video System (IVS) for flicker-free monitoring and comprehensive 24V power distribution for accessories.
