Includes:

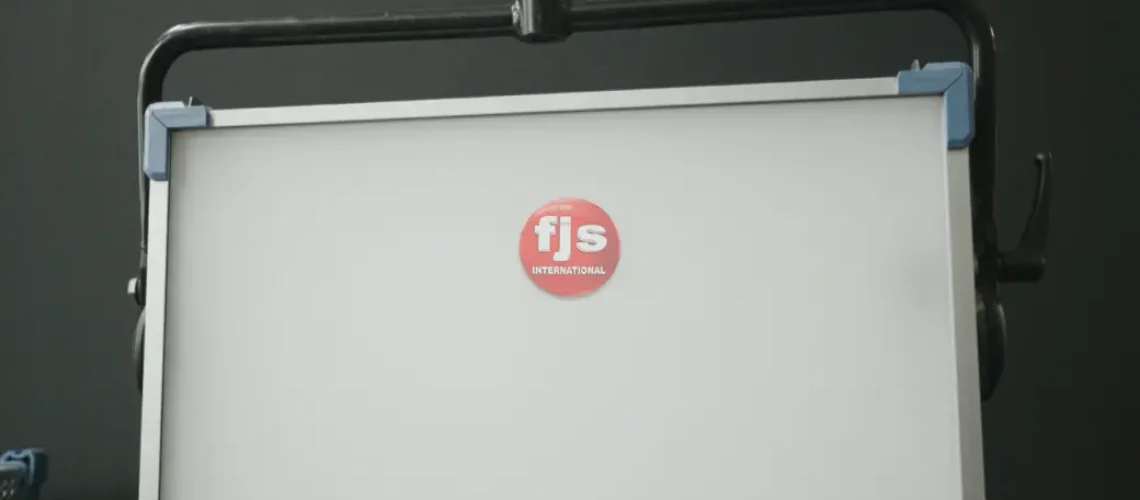

SkyPanel S60-C
Ballast
DC Cable 0.5 m (XLR)
Flight Case
Tech Specs:
Lamphead S60-C
Optical System Soft Diffusion Panel
Light Aperture 645 x 300 mm / 25.4 x 11.8″
Beam Angle 115º (Half Peak Angle)
Weight Manual Version: approx. 13 kg / 29 lbs
Pole Op Version: approx. 14 kg / 31 lbs
Packed Weight: Manual Version: approx. 21 kg / 46 lbs
Pole Op Version: approx. 22 kg / 49 lbs
Size (H x W x L): 433 x 133 x 825 mm / 17 x 5.3 x 32.5″
Packed Size (H x W x L): 460 x 300 x 856 mm / 18 x 11.8 x 33.7″
Handling Aluminium Yoke, High Strength Tilt Lock
Pole Operation Option (Pan & Tilt)
Mounting 28 mm Spigot (Junior Pin)
Tilt Angle +/- 90º
Lamphead Voltage Input 48 V DC
Power Consumption 420 W Nominal, 450 W Maximum
Lamphead Power Connection Male 3-Pin XLR – 15 Amp (Pin 1: Negative / Pin 2: Positive)
Battery Connector Male 4-Pin XLR – 10 Amp (Pin 1: Negative / Pin 4: Positive)
Battery DC Voltage Range 23 to 36 V DC
Battery Mode Light Output 50 % of total output
White Light 2,800 K to 10,000 K continuously variable correlated color temperature
Colored Light Full RBG+W Color Gamut with Hue and Saturation Control
Color Temperature Tolerance +/-100 K (nominal), +/-1/8 Green-Magenta (nominal)
Color Rendition CRI Average > 95
TLCI Average > 90
Features:
Fully tunable color temperature: Adjust from a warm 2,800K to a cool 10,000K to perfectly match the ambient light or create a desired mood.
High CRI and TLCI: Ensures accurate color rendering for natural-looking skin tones and vibrant colors.
Soft, flattering light: Large surface area and interchangeable diffusers create beautiful, soft light that wraps around your subject.
Powerful output: Despite its soft light, the S60-C is surprisingly bright, comparable to a 2,000W tungsten soft light.
Lightweight and portable: Makes it easy to use on location or in the studio.
Wide range of control options: Onboard controls, DMX, and wireless control for flexible integration into your lighting setup.
